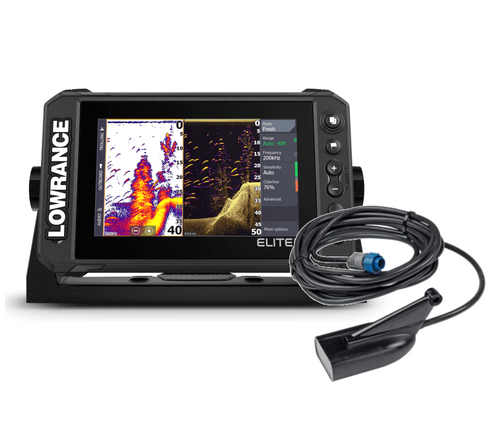

Lowrance Eagle 7 with 50/200 HDI Transducer | 000-16311-001

EASY TO USE SONAR

50/200 HDI LOW/HIGH

Perfect for anglers who want the best views below the boat, even in deeper water, 50/200 HDI transducers feature the fish-finding capability of powerful CHIRP sonar and the high-resolution images of fish-holding structure from DownScan Imaging™.

FishReveal™ Take the guesswork out of fish identification with FishReveal, combining DownScan with CHIRP for unparalleled target separation and identification.

Autotuning Sonar Simple autotuning sonar gives you the optimal settings from the start so you don’t have to spend time trying to find them yourself.

Features:
• 50/200 HDI LOW/HIGH Transducer with Autotuning sonar
• Autotuning sonar
• Worldwide basemap
• IPS screen, viewable from all angles, even in polarized glasses
• New reliable twist-lock connector system for easy installation in any boat or kayak
• SD card slot for software updates, Genesis Live recording and charting add-ons.
• See fish hiding in cover with FishReveal™ mode
• Increase contrast and viewability with all-new Imaging colour palettes

Specifications:
Display
• Backlight Colour: Pure white LED
• Resolution: 800 x 480
• Screen Brightness: 1000 NITS
• Size and Type: 5" IPS Display
• Viewing Angles: 80° top/bottom, 80° left/right
Electrical
• Power Consumption, max.: 280 mA @ 12 V DC with backlight on full
• Power Consumption, min.: 190 mA @ 12 V DC with backlight off
• Power Consumption, typical: 280 mA @ 12 V DC with backlight on full
• Recommended Fuse Rating: 3A
• Supply Voltage: 12v DC (10.8-17VDC)
• Humidity: 60°C, 95% relative humidity (RH) for 48 hours
Environment
• Operating Temperature Range: 5°F to 131°F (-15°C to 55°C )
• Storage Temperature Range: 4°F to 140°F (-20°C to 60°C )
• Waterproof rating: IPX7 with card door closed
GPS
• Correction: SBAS
• Time to First Fix: 45s
MFD
• Cartography included: Worldwide basemap chart
• Cartography supported: C-MAP® DISCOVER™.
• External Storage: 1 slot (microSD® 32 GB maximum)
• Waypoints, Routes, Tracks: 3000 Waypoints 100 Routes 100 Trails
• Compass Safe Distance - Metric, imperial: 12" (300mm)
Physical
• Dimensions (W x H x D): 182.1 mm (7.17") x 113.2 mm (4.46") x 110.6 (4.35")
• Mounting Type: Gimbal bracket or dash mount
• Weight: 0.46 kg (1.01 lb)
Other
• Warranty Period: 1 Year + 4 additional years of upgrade options totaling 5 years
• Interface: Keypad:8-way directional keypad, Zoom +/- (MOB), Exit, Enter, Menu, Waypoint, Power / backlight

MANUALS AND GUIDES
