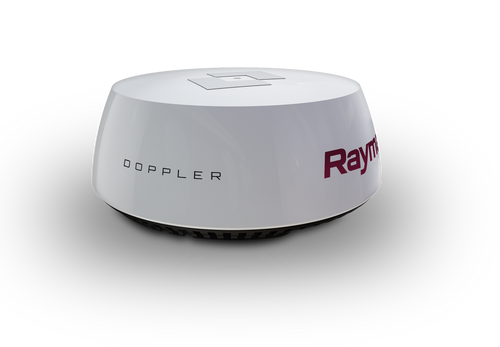

Raymarine Quantum 2 Q24D Doppler Radar & 15m Power & Data Cable | T70417

QUANTUM 2 WITH DOPPLER COLLISION AVOIDANCE TECHNOLOGY

Raymarine Quantum 2 with Doppler collision avoidance technology makes it easy to discern potentially dangerous targets when navigating in high-traffic areas. Using advanced Doppler processing, Quantum 2 instantly highlights moving radar contacts and colour codes them to indicate whether they are inbound or outbound.

Features:
• Quantum 2 Doppler Radar, perfect for Sailboats, RIBs, and smaller powerboats.
• Available as a standalone scanner with no power or data cable or with 10m and 15m cabling
• Provides excellent short-range detection and enhanced target detail with 18’ (6m) minimum range
• Simplified, fast installation and can utilize existing Raymarine scanner fixing points
• Once installed, Quantum 2 starts up and is ready to go installed providing immediate awareness

Specifications:
• Dimensions: Diameter | Height: 541.0 mm | 209.5 mm
• Weight : 5.6 kg
• Supply voltage: Either 12 V dc or 24 V dc nominal
• Operating voltage range: Minimum: 10.8 V dc | Maximum: 31.2 V dc
• Power Consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi: 2 W
• Waterproofing : IPX6
• Operating temperature range: -10°C to +55°C
• Storage temperature range: -25°C to +70°C
• Additional storage conditions : Store upright; do not block vents on underside
• Humidity: Up to 95% at 35°C
• Maximum wind speed : 100 kts

In the Box:
• Quantum Radome
• 15 m (49.2 ft.) Power cable
• 15 m (49.2 ft.) Data cable
• M8 mounting bolts with spring washers and flat washers x4
• Documentation
