Quick RRC+ Receiver with H02+ Transmitter

The RRC radio control receiver is a device which combined with an RRC radio transmitter is suitable for controlling the operation of devices or accessories installed on recreational crafts.

• • Full supply range (from 10.5 to 31 Vdc).
• • Microcontroller-operated functions.
• • FSK modulation and carrier frequency 869.8 Mhz.
• • Operating temperatures from -15°C to +70°C.
• • Indication of the system operating status, errors and problems by means of LED and seven-segment display.
• • Protection against polarity inversion.
• • Protection against the discharge of the battery.
• • 50 transmitters can be stored.
• • Translation mode to activate more receivers, installed in different spots, by means of one transmitter.
• • Programmable digital filter.
• • Two functions can be activated at the same time.
• • Possible connection to an external antenna.

Quick RRC H02 TX Handheld Remote is suitable for controlling a Windlass. This handheld remote control has 2 buttons (up and down).

• Microcontroller-operated functions.
• FSK modulation
• Operating temperatures from -15°C to +70°C.
• Possibility to control more receivers with one transmitter.
• Two functions can be activated at the same time.
• Floating
• Also works with rechargeable batteries.
• Keyboard backlighting by means of LEDs.

Specifications
Model Quick RRC H02 TX
Voltage Description 3x Alkaline AAA Batteries or 3x NiMH Rechargeable Batteries
Amps Description During Transmission: 16mA
Height Description 119mm (4-11/16"), Excluding Lanyard Loop: 116mm (4-9/16")
Width 61mm (2-13/32")
Depth 35mm (1-3/8")

In The Box
RRC radio control receiver
Handheld Radio Transmitter & Lanyard
Batteries
Protective Case
Conditions of Warranty
Installation and User Manual

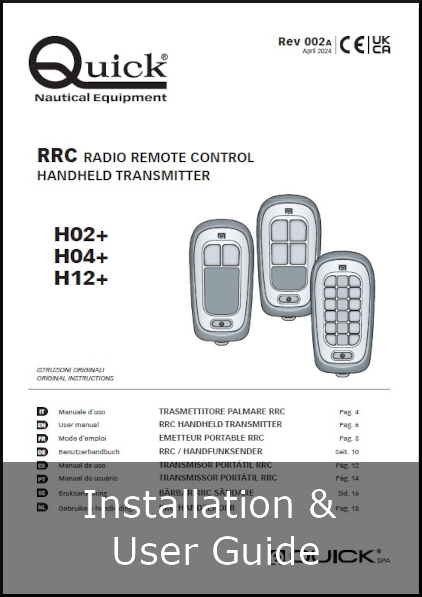

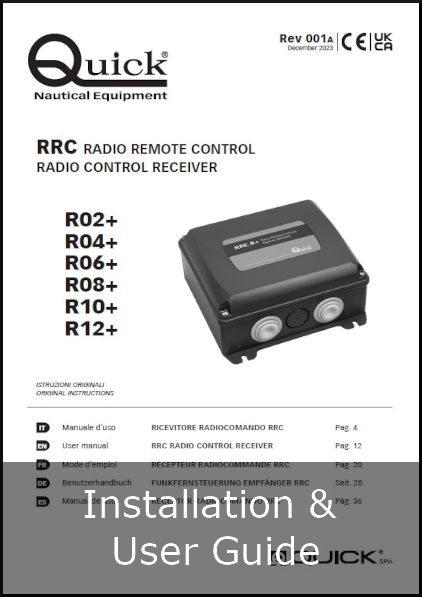

MANUALS AND GUIDES
