Product Overview
Quick Prince DP3P Without drum - Gypsy-Drum Ø 130mm / 5"1/8
The Quick DP3 Prince 1012 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 10mm (3/8") gypsy which is suitable for 10mm ISO chain. This is the windlass only version of the 1012, this includes a T6315-12 contactor unit that is 12V and 1000W.
Specifications:
Material: Stainless Steel
Primary Construction: Stainless Steel
Suitable For: Chain
Boat Size: 10 to 14 metres in length
Gypsy Size: 10mm
Brand: Quick
Series: Prince DP3
Model: 1012
Voltage Description: 12V DC
Wattage: Motor Power: 1000W
Working Load: 120kg (264 lb), Maximum: 370kg (816 lb)
Maximum Pull Load: 1000kg (2205 lb)
Maximum Chain Speed: 39.6 m/min (129.2 ft/min), At Working Load: 20.4 m/min (66.9 ft/min)
Amps Description: Current Absorption At Working Load: 140A
Fuse: 80A Protection Circuit Breaker
Height: 254.4mm (10-1/64")
Width: 350mm (13-25/32")
Depth: 233.5mm (9-3/16")
Size: Motor Cable: 35mm2 (AWG2)
Contents: Contactor Unit, Drilling Template, User Manual

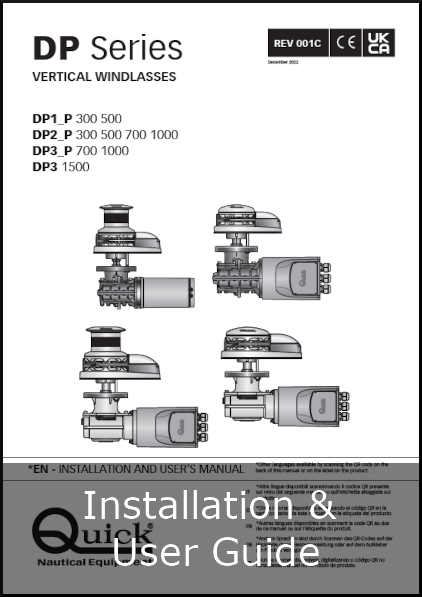

MANUALS AND GUIDES
