Raymarine Evolution Solenoid Autopilot

Raymarine

RRP: £2,795.00
£2,515.50
(You save £279.50 )
SKU:
T70160
Adding to cart… The item has been added

Product Overview



Raymarine Evolution Solenoid Autopilot with p70Rs Control Head & ACU-300 | T70160

(suitable for Solenoid drives)

evolution autopilot p70rs control head ev 1 sensor core acu 300

This Autopilot system pack by Raymarine includes:

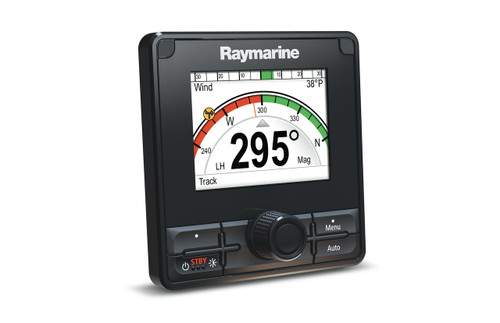

raymarine p70rs autopilot control heads front view

p70Rs Control Head

Autopilot control head for Evolution autopilots. Push buttons and rotary control designed for powerboat installations.

PERFECT FOR POWER BOATS

Key Features
• 3.5" super bright, oversized LCD
• Optical bonding for brighter colours, sharper contrast, and fog-free operation
• Rotary controller for course changes and power steer mode
• Glass bridge design compliments Axiom-series chartplotters
• SeaTalkng networking for seamless connection to Raymarine and NMEA2000 networks
• Supplied with both black (Axiom style) & gunmetal (Series style) bezels and protective suncover

Specifications
Screen Resolution: 320(H) x 240(V) pixels
Size: 3.45" TFT LCD display
Colour: 16-bit colour (64k colours)
Brightness: 1,200 cd/m2

Dimensions:
Depth (including cable bend radius): 151.65 mm (5.97)
Height: 115 mm (4.53 in)
Width: 110 mm (4.33 in)

In the Box:
Suncover
p70s or p70Rs (p70s shown) supplied with keypad and black bezel fitted
Gunmetal bezel
Panel seal gasket
Documentation
Suppression ferrite
Mounting fixings x 4 (M3x16 panhead pozi screws)

ev-2 wall mount autopilot

EV1 Sensor Core

The EV1 Sensor Core is an intelligent and innovative 9-axis sensor that precisely monitors heading, pitch, roll and yaw vessel motion in all three dimensions, allowing it to adapt instantly to changes in sea conditions and vessel dynamics. The EV1 delivers dynamic accuracy to within 2 degrees in all conditions with sold state sensor technology. The sensor core is mountable above or below-deck for flexibility and has a fully sealed rugged enclosure with an IPX6 and IPX7 waterproof and submersion rating. Easy to network with a simple SeaTalkng  connection to the control head and ACU. The EV1 belongs at the heart of every Evolution system.



 acu 300 autopilot control unit front

ACU-300

The ACU-300 is a rugged Actuator Control Unit (ACU) that delivers secure autopilot drive power and also provides power to the SeaTalkng  bus. This ACU supports solenoid controlled steering systems and Raymarine constant running hydraulic pumps.

MANUALS AND GUIDES

raymarine p70s p70rs autopilot control head installation instructions raymarine i70s p70s p70rs mounting template
