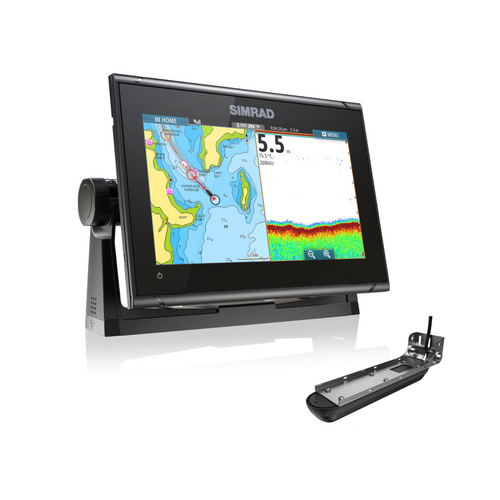

Simrad GO9 XSE Multifunction Display | 000-14444-001

(No Transducer)

The GO9 XSE Multifunction Display by Simrad offers an easy to use and intuitive multi-touch display with pinch-to-zoom.

The GO9 provides a clear menu layout with simple icons and its customisable features let you fully personalise your display to compliment your vessel. You can also view all the information you need on one screen with adjustable split-screen and customisable panel layouts. The built-in 10Hz GPS receiver makes the GO9 ideally suited for use aboard fast-moving powerboats, updating your position ten times per second while tracking smoothly and accurately in real-time with no ‘skipping’ from point to point. Additionally the power/cruising navigation page brings together the most important information in a single, easily- readable display. Compatible with a wide range of cartography such as C-MAP® MAX-N, Navionics®, Insight®, Insight Genesis®, and NV Digital® Charts, you can Navigate with flexibility and confidence to wherever your destination may be.

Also the GO9 gives you the ability to set and record your destinations with waypoint management features, allowing you to mark waypoints, assign personalised names, all with the touch of your finger. The GO9 is also NMEA 2000® compatible with the ability to connect to any equipment aboard you vessel including outboard and inboard engines; fuel level and flow meters; speed, heading, and water temperature sensors; and much more. The built-in Sonar allows for accurate, real-time depth tracking, simply add one of the HDI transducers by Simrad and enjoy features such as DownScan Imaging™ with provides a picture-like view of the bottom of your vessel. When combined with a compatible transducer the GO9 acts as a powerful fish finder with CHIRP-enabled broadband sonar for clear detection of fish throughout the water column. Also features built-in Wi-Fi allowing users to connect from their smartphone and provides direct access to our GoFree cloud services for simple and convenient wireless map downloads, software updates, and more.

• Multi-touch Widescreen Display
• Display - 9” Widescreen LCD | WVGA | Colour TFT | LED/1200 nits | Backlighting | Screen Resolution 480 x 800
• Built-in GPS - 10 Hz
• Broadband Echosounder with CHIRP
• Built-in ForwardScan™ sonar (requires additional transducer - sold separately)
• Built-in StructureScan® imaging (requires additional transducer - sold separately)
• Built-in Wi-Fi
• Waypoint Storage - 10,000 points total combined waypoints / route points
• Integrated Radar Display
• Autopilot Control
• TripIntel™ technology
• microSD Card Slot
• Mount - Flush or Bracket
• NMEA 2000 Connectivity
• Waterproof Rating - IPX7
• Power Supply (Supply Voltage) - 10-17 V DC

*The GO9's built-in GPS receiver works in any bracket-mount installation, and when flush-mounted with most fibreglass hulls. When flush-mounted in a metal hulled vessel, an external GPS receiver such as the Simrad GS25 may be required.
