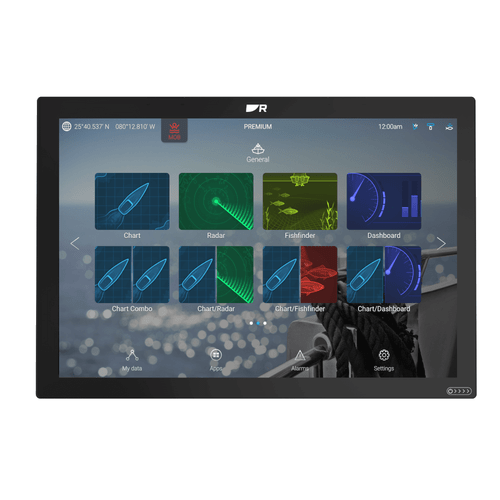

Raymarine Axiom XL 24 Multifunction Display

Raymarine

RRP: £15,495.00
£13,945.50
(You save £1,549.50 )
SKU:
E70401
Adding to cart… The item has been added

Product Overview

 Raymarine Axiom XL 24 Multifunction Display | E70401

The Raymarine Axiom XL offers superior performance, large format visibility and elegant simplicity. Engineered to perform in extreme conditions, the fully waterproof Axiom XL can be installed in both open cockpits and enclosed bridge stations. Using in-plane switching technology (IPS) and Raymarine optical bonding to deliver wider viewing angles, sharp contrast, and unmatched readability in bright sun. At the heart of the Axiom XL display is a blazing fast quad core processor that delivers a responsive and powerful all-in-one big screen navigation experience. Axiom XL brings together multiple technologies and sensors into single or multi display helm solution. Integrate Axiom XL with additional Axiom XL displays or connect seamlessly with Raymarine’s family of Axiom and Axiom Pro displays at remote stations

The Axiom XL is optimised for flush or surface mounting and features sleek buttonless design with swipe-to-power touch control. A built-in ambient light sensor automatically adjusts display brightness based on lighting conditions. With LightHouse Apps you can expand the power and capabilities of Axiom XL by streaming mobile entertainment apps and connect with leading marine technology partners like Seakeeper, Mazy and Luminshore. Keep Watch on the crew or engine room with marine video cameras. Connect both analog and video over IP to view 4 simultaneous video streams. Built in recording capability transforms Axiom XL into an onboard DVR.

A powerful network and video integration platform, Axiom XL displays feature three Ethernet ports for connecting radar, CHIRP and 3D sonar modules, plus additional Axiom family displays. FLIR thermal camera support enhances awareness and HDMI input enables Axiom XL to serve as a remote PC or entertainment display.

 compatible-transducers    compatible radars    compatible cameras    axiom accessories    navionics charts

In The Box:

Axiom XL MFD.
Suncover
Rear mounting bar x2
Documentation pack
Mounting gasket tape
Power/Video/NMEA 0183 cable 1.5m (4.92 ft) right-angled
Mounting bar fixings x4
Mounting fixings x4
SeaTalkng to DeviceNet 1m (3.3 ft) adaptor cable
M3x5 screw, M3 spring washer and M3 crimp terminal
RayNet 2m (6.6 ft) network cable

Specifications:

  • Display Size: 24.0"
  • Display Type: IPS (In-Plane Switching)
  • Colour: Depth: 24 Bit
  • Display Resolution: 1920 x 1200 WUXGA
  • Display Aspect Ratio: 16:10
  • Viewing Angle: Top 89’ / Bottom 89’ / Left 89’ / Right 89’
  • Nominal supply voltage: 12 / 24 Vdc
  • Operating voltage range: 8 Vdc to 32 Vdc
  • Fuse Requirements: Inline fuse = 15Amp, or Thermal breaker = 15Amp
  • Max. Power: 96W
  • Operating Temperature Range: -25°C to + 55°C
  • Storage temperature range: -30°C to +70°C
  • Humidity: Up to 93% @40°C
  • Waterproof Rating: IPx6 and IPx7
  • Dimensions: 579 x 74 x 387 | W x D x H (mm)
  • Product Weight (Kg): 11.3
  • Internal Storage: 64 GB Solid State (62 GB usable)
