    Simrad R3016 Radar Control Unit with TXL-10S-6 Radar | 000-12196-001

    simrad pro marine radar r3016 large front view

    The Simrad R3016 Radar Control Unit is a 16” widescreen dedicated radar display that provides simple, low impact installation with no separate processor and embedded console design, this radar display also allows for NMEA 0183 and NMEA 2000 network connectivity. Features include highly advanced digital auto tuning system, latest generation anti-sea clutter STC, ease-to-use with 8 direct-access menu keys and superior target resolution with advanced beam sharpening technology (available with 4G and Halo). In addition, The display can be controlled remotely with the optional O2000 wired remote controller.

      • Dedicated Radar display
      • Display - 16” widescreen | 300 cd/m2 Brightness | 1366 x 768 Resolution | LED-backlit Colour TFT LCD
      • Simple, Low Impact Installation
      • Bracket or Flush Mount Options
      • Simple Operation with 8 direct-access Menu Keys
      • Highly Advanced Digital Auto Tuning System
      • Anti-Sea Clutter STC
      • Superior Target Resolution
      • Meets IEC 62552 (pending) for small craft RADAR requirements for Class A vessels (When paired with specified Simrad Radar)
      • Network - 4x NMEA0183 | 1x NMEA2000 | 1x Ethernet | 1x HDMI Video Repeater Output
      • Remotely Controlled by Optional O2000 Wired Controller
      • Waterproof Rating - IPX6
      • Dimensions - 455.5 mm / 17.93 in x 260.1 mm / 10.24 in x 61 mm / 2.40 in | W x H x D
      • Weight - 4 kg / 8.8 lb
      • Power - 12-24 V DC
      • Power Consumption - 20W

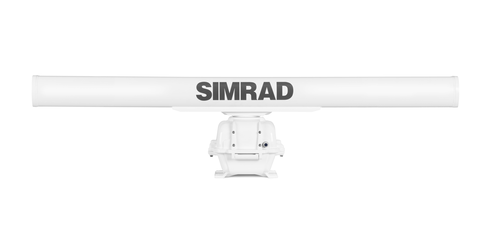

    simrad txl 10s 6 hd radar front view

    The Simrad TXL-10S-6 10kW Open Array Radar is a high performance open array scanner with a proven history of oceangoing reliability and the latest in digital signal processing, ideal for large motorboats 50ft or more in length. A low emission radar which allows you to experience unparalleled situational awareness, with outstanding detection of small or distant targets and minimised screen-clutter providing a clear, precise and easy to view image. Offering improved reliability and safety thanks to its rugged design, safer General Public Radiation Exposure Limits and brushless geared DC motors for max service life. Other features include Marpa tracking with the ability to track up to 10 Marpa targets with full situational data and almost instant display of bearing and distances of targets from your vessel.

      • Low Emission Open Array Radar
      • Includes 20m Cable
      • Rotation - 27 rpm (6ft, Min 20rpm at Max 100Knots)
      • Relative Wind Velocity - 51.5 m/sec (100 Knots)
      • Perfect with Simrad NSO evo2 systems, also compatible with NSE, NSS, NSS evo2
      • Long-life Magnetrons and Brushless Motors
      • Reduced Emission Levels that exceed 2015 regulatory changes and offer safer operation
      • Commercial Design with 100kt Sustained Windload Rating
      • Automatic Tune, Gain & Sea Clutter Adjustments
      • Automatic Harbour & Offshore Modes
      • Dual EBL/VRM & Dual Guard Zones
      • Radar Overlay on charts and 10-target MARPA tracking with Optional Heading Sensor
      • iPad/Android tablet control with optional Go Free wireless module
      • Waterproof Rating - IPX6
      • Power - 21.6 to 31.2 V (DC24 Volt Systems)
      • Power Consumption - 230W (Max.) in Maximum Wind Velocity



    MANUALS & GUIDES

    R3016 Radar Display

    simrad r2009 r3016 stand alone radar quick user manual simrad r2009 r3016 stand alone radar quick reference



    TXL-10S-6 Radar

    simrad txl 10s 25s radar installation manual simrad txl 4 6 radar mounting template
